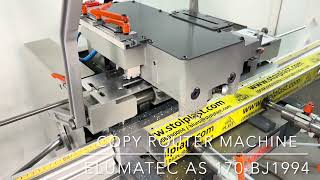

Elumatec AS 170 metal milling machine
≈ US$4,082
Ostrożne
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
Poland
Poland, Ostrożne
Poland, Ostrożne
Poland, Ostrożne
Poland, Ostrożne
Poland, Ostrożne
Poland, Ostrożne
Poland, Ostrożne
Poland, Ostrożne
Poland, Ostrożne
Poland, Ostrożne
Poland, Trzebunia, Polska
Poland, Ostrożne
Poland, Trzebunia, Polska
Poland, Trzebunia, Polska
Poland, Trzebunia, Polska
Poland, Trzebunia, Polska
Poland, Ostrożne
Poland, Trzebunia, Polska
Technical Data
Horizontal milling range with stops: 300 x 120 mm
Horizontal milling range with copy template: 285 x 110 mm
Spindle speed: 12,000 rpm
Profile clamping capacity: 150 x 130 mm, adjustable up to 400 mm
Stroke: 105 mm
Electrical connection: 230/400 V, 3-phase, 50 Hz
Power output: 0.74 kW
Compressed air connection: 7 bar
Air consumption per operating cycle:
12 l without spray system
24 l with spray system
Dimensions AS 170/00
Length: 780 mm
Depth: 770 mm
Height: 1,500 mm
Weight: 200 kg
Features and Equipment
Large milling capacity despite its compact design.
Copy routing using side stops or a copy template (1:1 ratio).
Pneumatic two-stage copy pin for different cutter diameters.
Patented copy lever suspension for highly precise milling operations.
Adjustable table height for profiles up to 400 mm high.
"Spindle Lock" system for quick and easy tool changes.
Pneumatic material clamping system.
Metered spray lubrication/cooling system.
Application
The machine is designed for routing slots, holes, and special cut-outs in aluminium and PVC profiles used in the manufacture of windows, doors, curtain walls, and façade systems.
